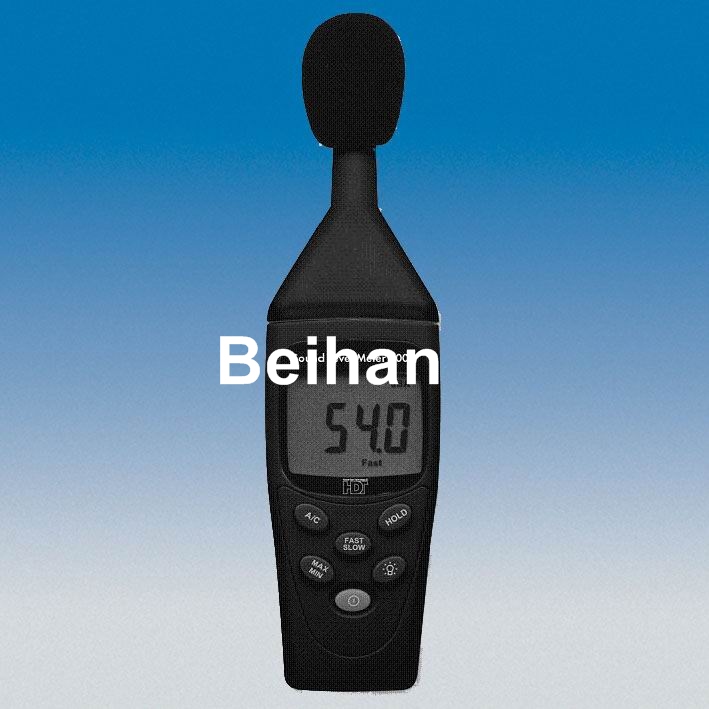

8002 Sound Level Meter

Model:8002

Sound Level Meter 8002
• Sound level measurements in accordance with the frequency evaluation filters A and C and with direct, digital display in Decibel (dB)
• Time evaluation FAST, SLOW
• Display of minimum and maximum sound pressure level (MIN/MAX hold)
• Backlight

Details

Download Data Sheet

Sound Level Meter

Model: 8002

The 8002 sound level meter is a general purpose test instrument. The instrument is an important support for sound level determination for the installation and service electrician in industry and handcrafts as well as for the home applications.

Features

• Sound Level Measurement in accordance with frequency evaluation filter A and C

• Direct display in dB

• Selectable sample rate FAST, SLOW

• MIN/MAX sound pressure level

• Backlight

• Incl. wind screen and carrying case

Technical Data

Display	4 digit, LCD
Measurement Range	30...130 dB
Resolution	0.1 dB
Accuracy	±1.5 dB
Frequency	31.2 Hz...8 kHz
Power Supply	Battery, 9V IEC 6LR61
Dimension	approx. 200 x 55 x 38 mm
Weight	approx. 290 g

Scope of supply

1 pc Sound Level Meter 8002

1 pc Battery 9V IEC 6LR61

1 pc Carrying Case

1 pc Wind Screen

1 pc Instruction Manual
